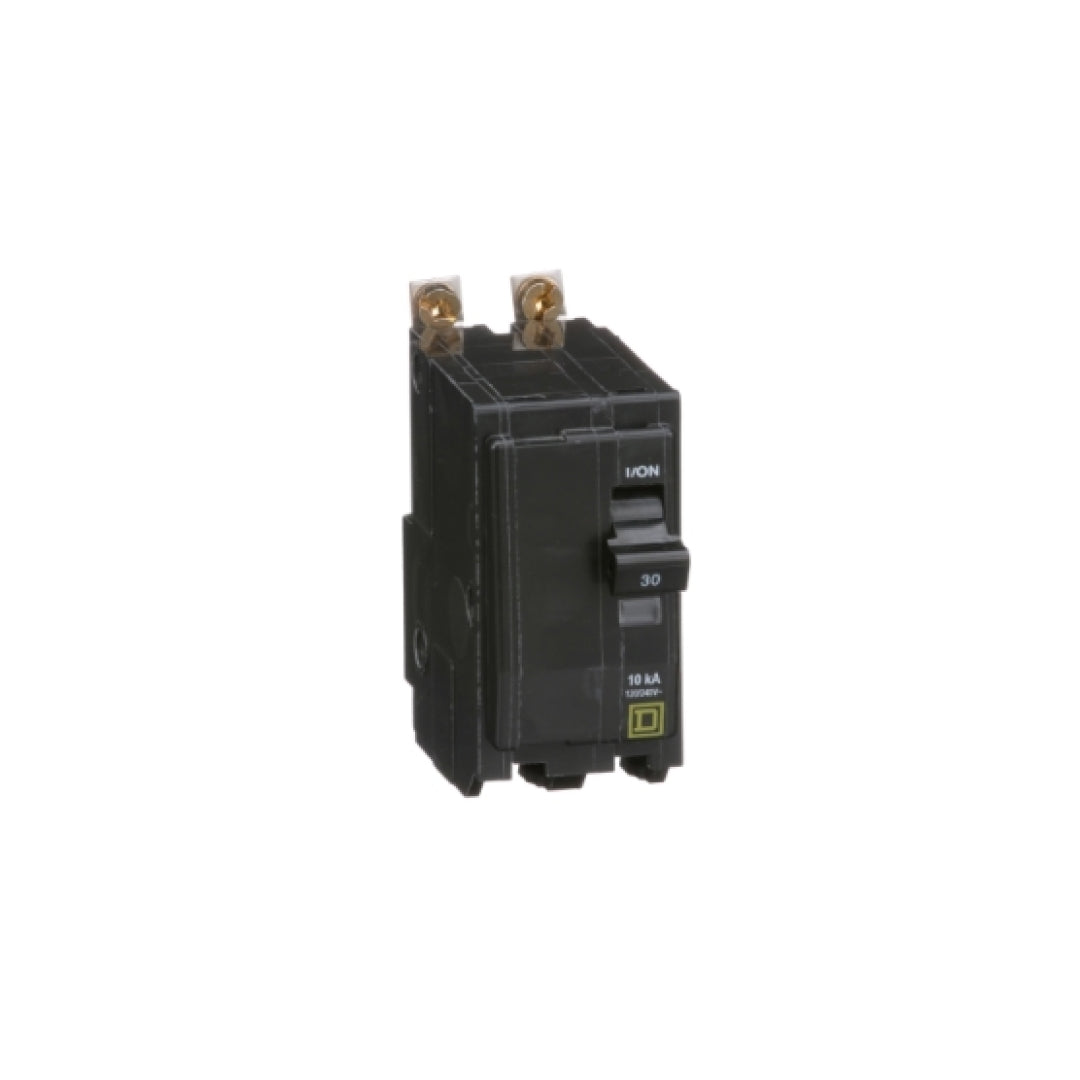

Mini circuit breaker, 30A, 2 pole, 120/240VAC, 10kA, bolt on - QOB230

$77.70 CAD
By Schneider
SKU: 20020001
Description
Product Miniature circuit-breaker
Range QO
Current Rating 30 A
Voltage Rating 120/240 V AC
120 V AC
Mounting Type Bolt-on
Number of Poles 2P
Circuit Breaker Type Standard
Ratings HACR rated
Electrical Connection Pressure plate



Complementary
Interrupt Rating 10 kA 120/240 V AC
10 kA 120 V AC
Number of Panel Spaces 2
Wire Size AWG 14...AWG 8 copper or aluminum
Tightening Torque 35.4 lbf.in (4 N.m)
Height 3.0 in (76 mm)
Width 1.5 in (38 mm)
Depth 2.9 in (74 mm)
Net weight 0.549 lb(US) (0.249 kg)



Environment
Certifications UL listed
CSA
Ambient Rating 104 °F (40 °C)
