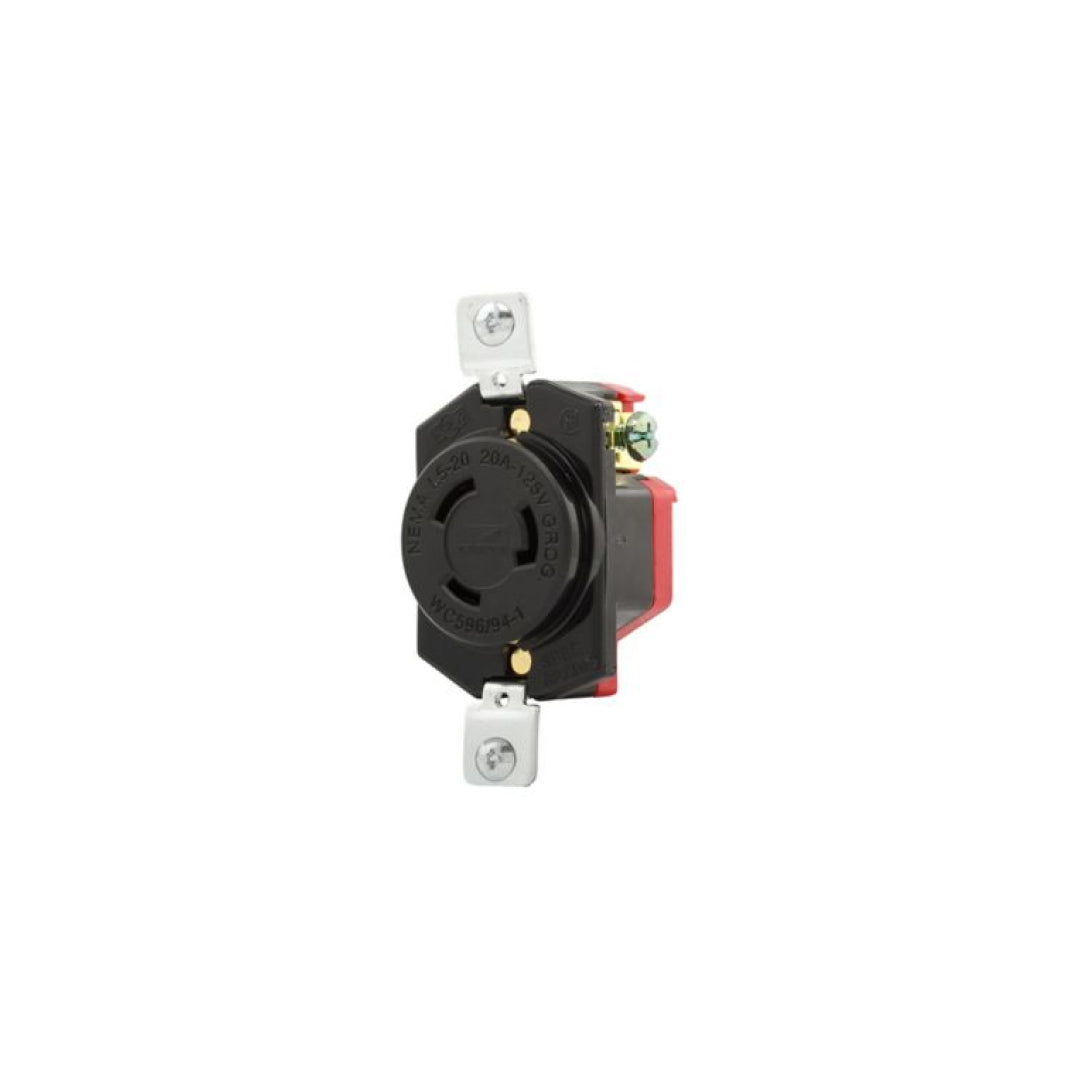

Eaton safety grip locking receptacle, 20A, Industrial, 125V L520R
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart locking receptacle
|
| Catalog Number |
L520R
|
| UPC |
032664417603
|
| Product Length/Depth |
1.44 in
|
| Product Height |
3.68 in
|
| Product Width |
1.71 in
|
| Product Weight |
0.18 lb
|
| Compliances |
Federal Specifications Classification W-C375
RoHS Compliant |
| Certifications |
UL Listed
CSA certified NOM |
Product specifications
|
Special features |
Severe duty locking plug |
|
Type |
Locking receptacle |
|
Amperage Rating |
20A |
|
Voltage rating |
125 V |
|
Contact material |
Brass |
|
Application |
Industrial |
|
Device grade |
Commercial |
|
Wiring method |
Back |
|
Number of wires |
3 |
|
Number of poles |
Two-pole |
|
Color |
Black |
|
Material |
Nylon |
|
Operating temperature |
-40 to 70 °C (-40 to 158 °F) |
|
Allowable wire size |
#14-8 AWG |
|
NEMA configuration |
L5-20 |
|
Design type |
Single receptacle |
|
Face/body material |
Nylon |
|
Receptacle type |
Single |
