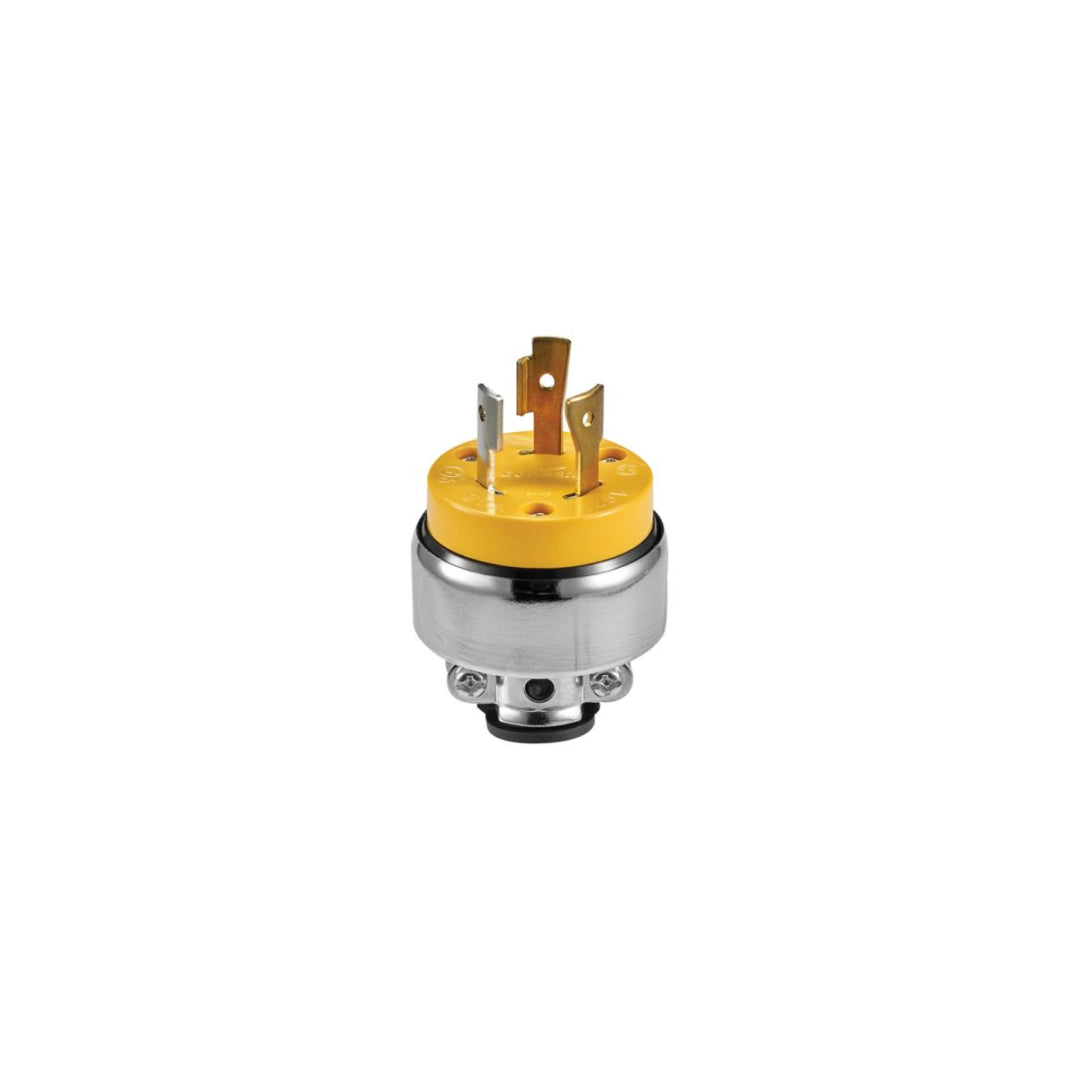

Eaton safety grip locking plug 2363-BOX
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart standard locking plug
|
| Catalog Number |
2363-BOX
|
| UPC |
032664323201
|
| Product Length/Depth |
9.5 in
|
| Product Height |
2.56 in
|
| Product Width |
3.75 in
|
| Product Weight |
0.2 lb
|
| Certifications |
NOM
UL Listed CSA certified |
Product specifications
|
Special features |
Armored |
|
Type |
Locking plug |
|
Amperage Rating |
20A |
|
Voltage rating |
125 V |
|
Contact material |
Brass |
|
Application |
Commercial |
|
Device grade |
Commercial |
|
Wiring method |
Back |
|
Number of wires |
Grounding |
|
Number of poles |
Two-pole |
|
Color |
Yellow |
|
Cord diameter |
0.25-0.63 in (6.4-16.8 mm) |
|
Material |
Polypropylene |
|
Operating temperature |
-20 to 60 °C (-4 to 140 °F) |
|
Allowable wire size |
#14-8 AWG |
|
NEMA configuration |
L5-20 |
|
Torque rating |
15 lbf-inch |
|
Design type |
Armored |
|
Face/body material |
Polypropylene |
