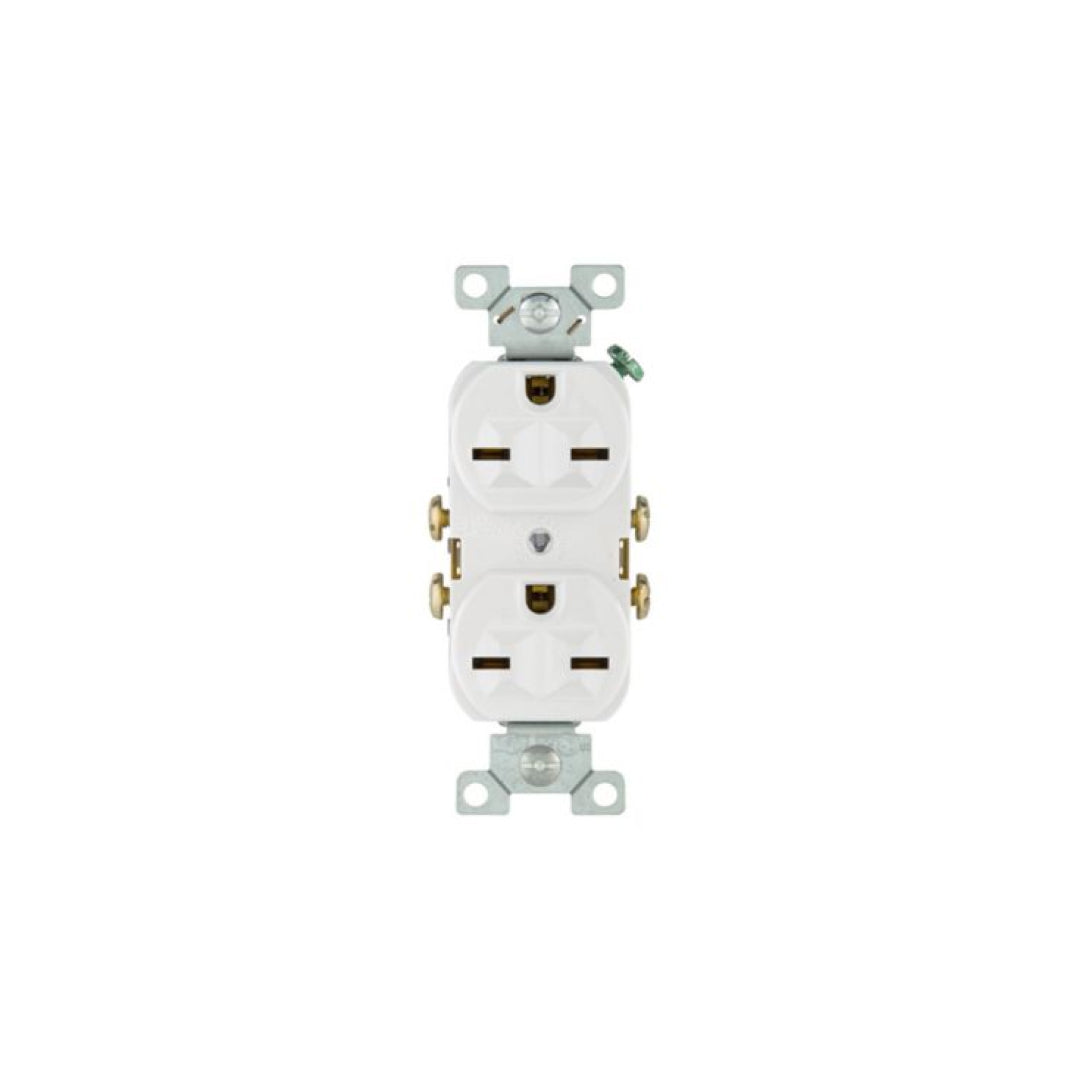

Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A 826W
$9.99 CAD
Unit price
/
Unavailable
By EATON
SKU: 05070099
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton commercial specification grade duplex receptacle
|
| Catalog Number |
826W-BOX
|
| Product Length/Depth |
1.3 in
|
| Product Height |
4.19 in
|
| Product Width |
0.82 in
|
| Product Weight |
0.001 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
cULus Listed
|
Product specifications
| Device type |
Receptacle
|
| Type |
Duplex receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
250V
|
| Contact material |
Brass
|
| Features |
Auto-grounding
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Side wire
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Glass-filled nylon
|
| Packaging type |
ED Box
|
| Color |
White
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
6-15R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
Nylon
|
| Receptacle type |
Duplex
|
