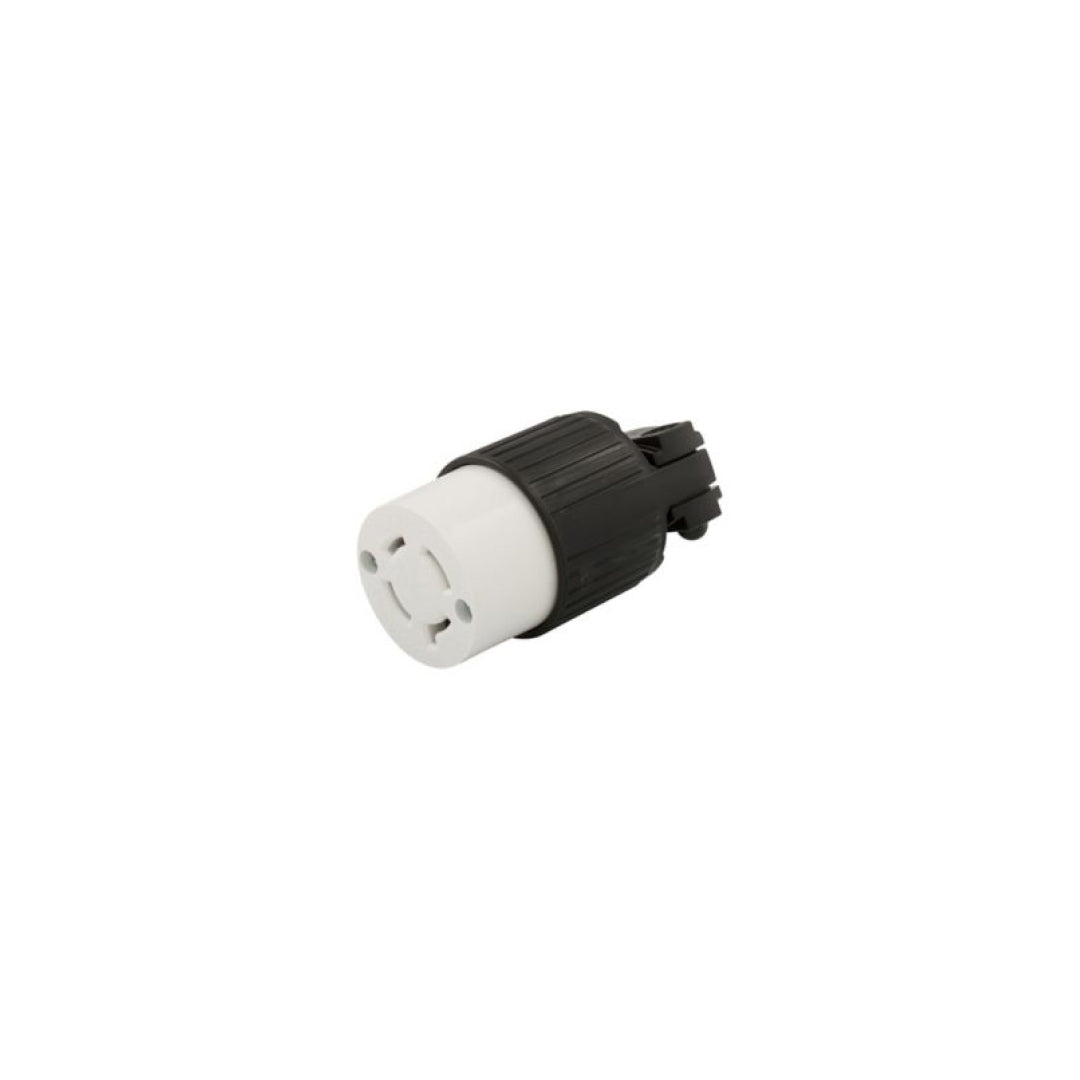

Eaton Arrow Hart ultra grip locking connector, #16-12 AWG, 20A L1420C
$29.99 CAD
Unit price
/
Unavailable
By EATON
SKU: 006905129
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart standard locking connector
|
| Catalog Number |
L1420C
|
| Product Length/Depth |
1.82 in
|
| Product Height |
3.19 in
|
| Product Width |
1.82 in
|
| Product Weight |
0.25 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
NOM
UL Listed CSA certified cULus Listed |
Product specifications
| Special features |
Safety grip locking plug
|
| Type |
Locking connector
|
| Amperage Rating |
20A
|
| Voltage rating |
125/250 V
|
| Contact material |
Brass
|
| Application |
Industrial
|
| Device grade |
Commercial
|
| Wiring method |
Back
|
| Number of wires |
Grounding
4 |
| Number of poles |
Three-pole
|
| Color |
Black
White |
| Cord diameter |
0.25-0.69 in (6.4 mm-17.5 mm)
|
| Material |
Thermoplastic
|
| Operating temperature |
-20 to 60 °C (-4 to 140 °F)
|
| Allowable wire size |
#16-12 AWG
|
| NEMA configuration |
L14-20
|
| Torque rating |
15 lbf-inch
|
| Design type |
Standard locking connector
|
| Face/body material |
Thermoplastic
|
