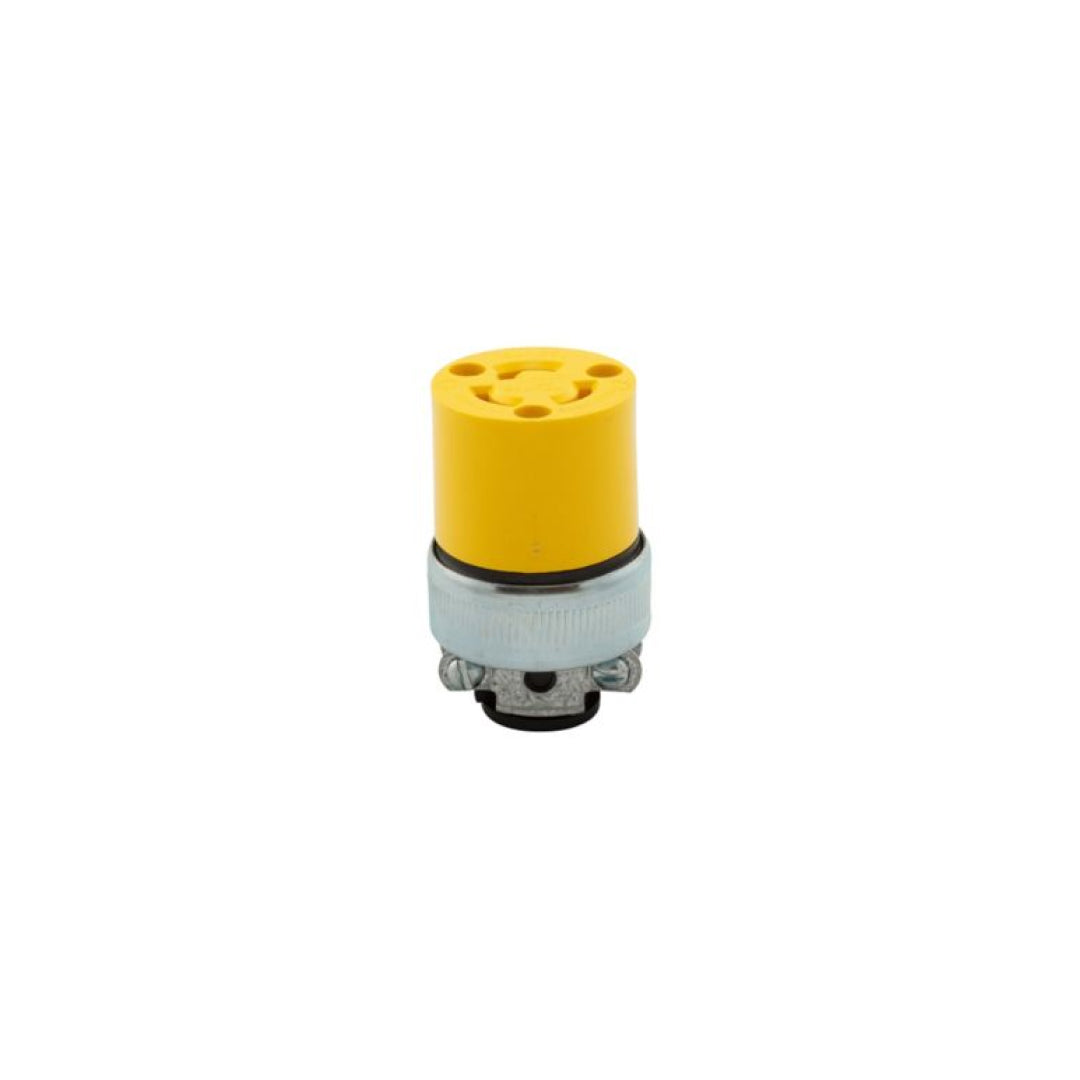

Eaton Arrow Hart standard locking connector 2493-BOX
$14.99 CAD
Unit price
/
Unavailable
By EATON
SKU: 009232901
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart standard locking connector
|
| Catalog Number |
2493-BOX
|
| UPC |
032664324901
|
| Product Length/Depth |
1.35 in
|
| Product Height |
2.37 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.181 lb
|
| Certifications |
cULus Listed
NOM CSA certified |
Product specifications
| Special features |
Armored
|
| Type |
Locking connector
|
| Amperage Rating |
15A
|
| Voltage rating |
125 V
|
| Contact material |
Brass
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Back
|
| Number of wires |
3
Grounding |
| Number of poles |
Two-pole
|
| Color |
Yellow
|
| Cord diameter |
0.25-0.63 in (6.4-16.8 mm)
|
| Material |
Nylon
|
| Operating temperature |
-20 to 60 °C (-4 to 140 °F)
|
| Allowable wire size |
#14-8 AWG
|
| NEMA configuration |
L5-15
|
| Torque rating |
15 lbf-inch
|
| Design type |
Armored
|
| Face/body material |
Polypropylene
|
