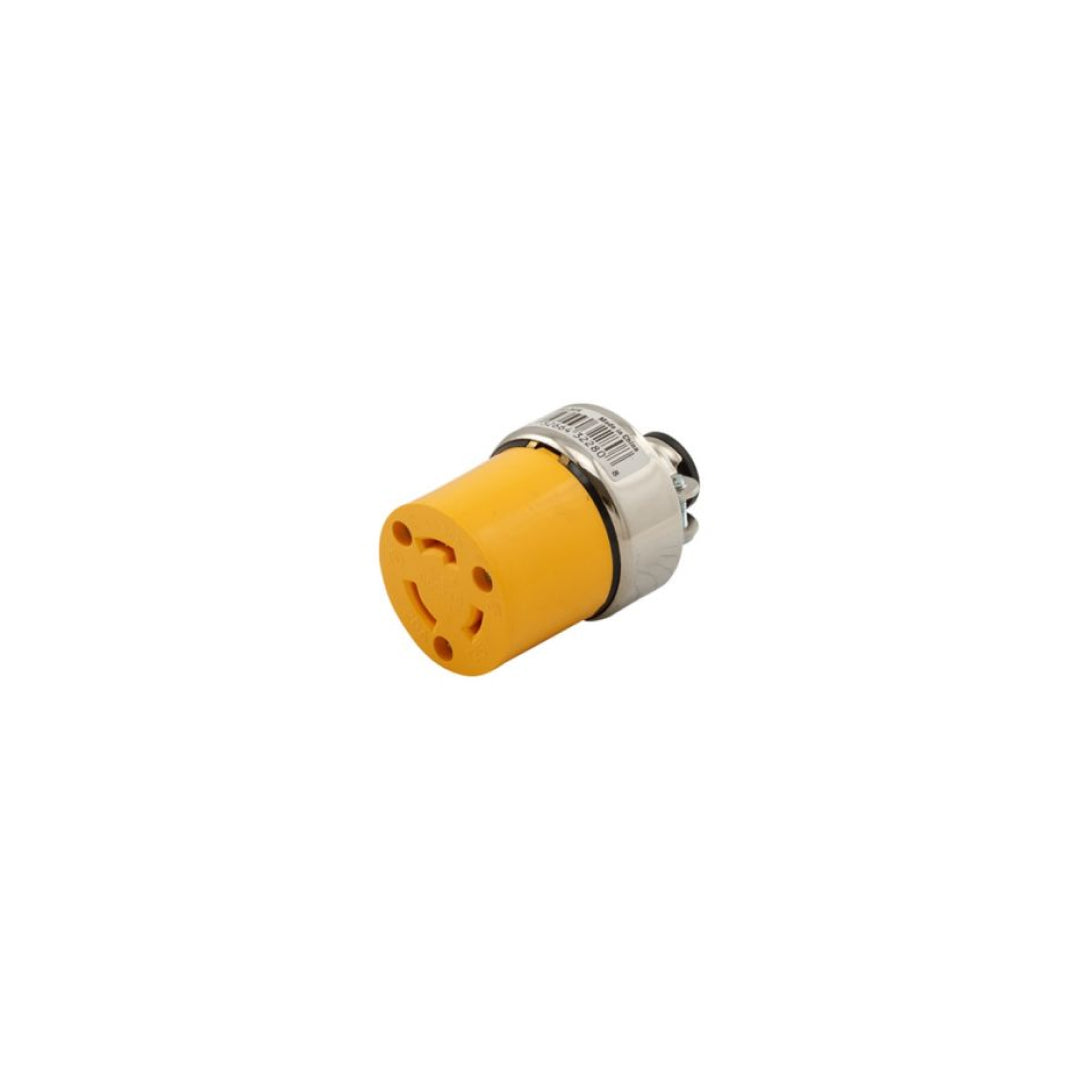

Eaton Arrow Hart locking connector , #12-4 AWG, 20A 2353-BOX
$17.99 CAD
Unit price
/
Unavailable
By EATON
SKU: 009232844
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart standard locking connector
|
| Catalog Number |
2354-BOX
|
| Product Length/Depth |
9.5 in
|
| Product Height |
2.56 in
|
| Product Width |
3.75 in
|
| Product Weight |
0.25 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
NOM
CSA certified UL Listed |
Product specifications
| Special features |
Armored
|
| Type |
Locking connector
|
| Amperage Rating |
20A
|
| Voltage rating |
250 V
|
| Contact material |
Brass
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Back
|
| Number of wires |
Grounding
3 |
| Number of poles |
Two-pole
|
| Color |
Yellow
|
| Cord diameter |
0.25-0.63 in (6.4-16.8 mm)
|
| Material |
Nylon
|
| Operating temperature |
-20 to 60 °C (-4 to 140 °F)
|
| Allowable wire size |
#14-8 AWG
|
| NEMA configuration |
L6-20
|
| Torque rating |
15 lbf-inch
|
| Design type |
Armored
|
| Face/body material |
Polypropylene
|
