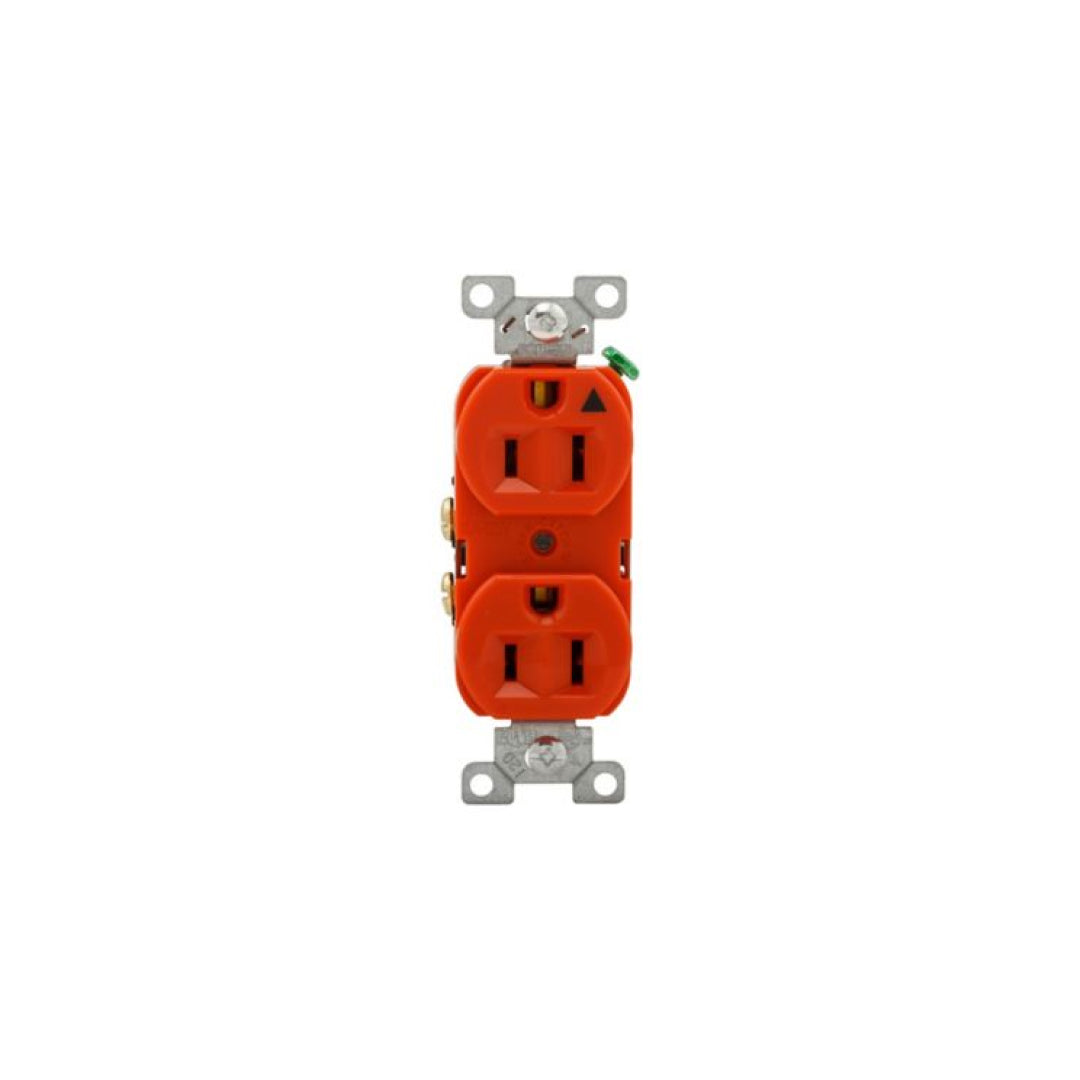

Eaton Arrow Hart heavy-duty industrial specification grade duplex receptacle IG5262RN
$13.99 CAD
Unit price
/
Unavailable
By EATON
SKU: 009234592
Couldn't load pickup availability
Description
General specifications
| Product Name |
Eaton Arrow Hart heavy-duty industrial specification grade duplex receptacle
|
| Catalog Number |
IG5262RN
|
| Product Length/Depth |
1.3 in
|
| Product Height |
4.19 in
|
| Product Width |
0.89 in
|
| Product Weight |
0.37 lb
|
| Compliances |
RoHS Compliant
|
| Certifications |
UL
NOM Federal Specification Classification 6233 01 |
Product specifications
| Device type |
Receptacle
|
| Type |
Duplex receptacle
|
| Amperage Rating |
15A
|
| Voltage rating |
125V
|
| Contact material |
Brass
|
| Features |
Isolated ground
Auto-grounding Terminal guards Screw-catch |
| Application |
Industrial
|
| Device grade |
Heavy-duty industrial specification grade
|
| Wiring method |
Back and side
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
Glass-filled nylon
|
| Color |
Orange
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
5-15R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
High-impact nylon face
Glass-filled nylon base |
| Receptacle type |
Duplex
|
