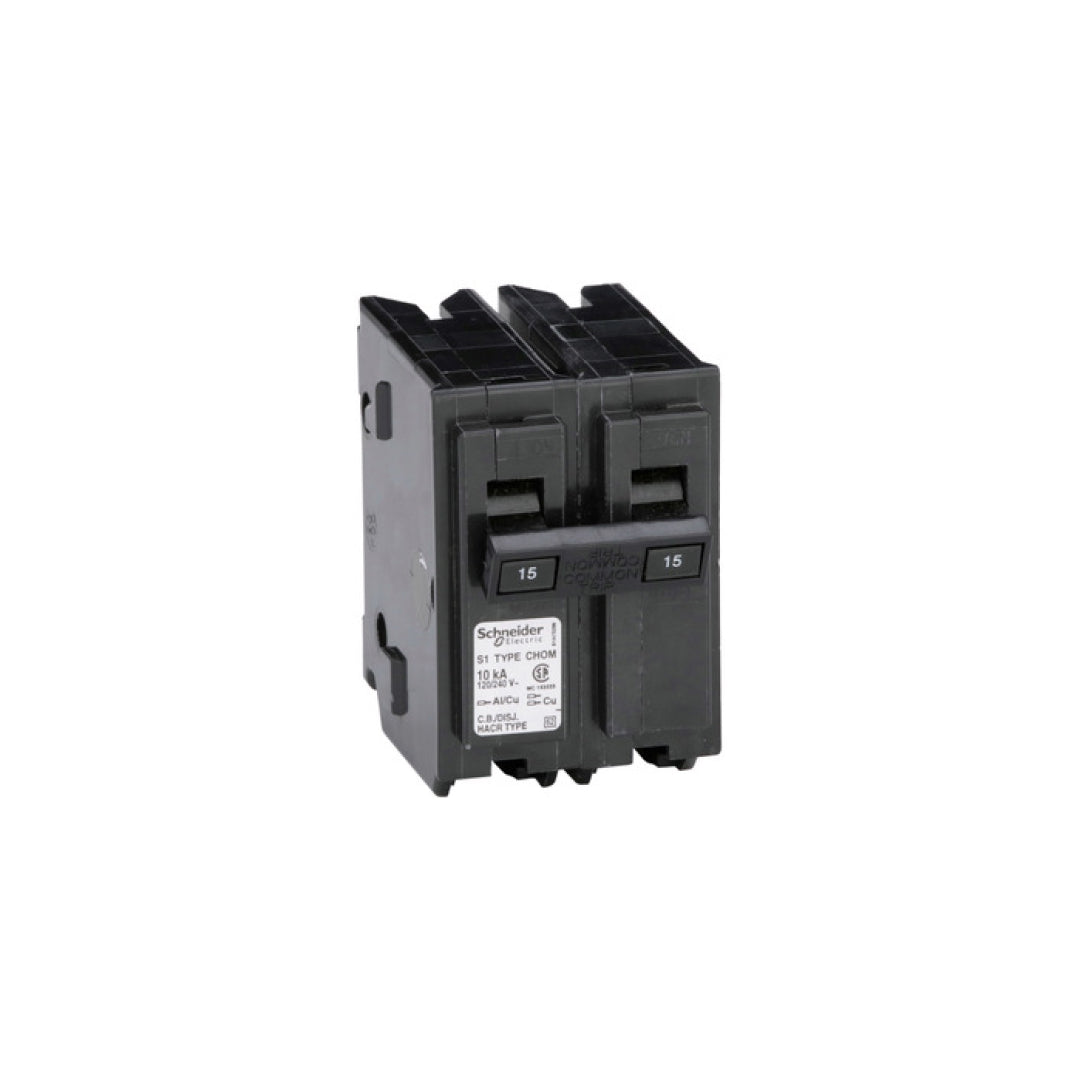

CHOM215 2P 15A 125/277V Push On Breaker
$42.84 CAD
Unit price
/
Unavailable
By Schneider
SKU: 0501068
Couldn't load pickup availability
Description
| Range of product | Homeline |
|---|---|
| Product or component type | Miniature circuit-breaker |
| [In] rated current | 15 A |
| [Ue] rated operational voltage | 120/240 V AC |
| Mounting mode | Plug-on |
| Poles description | 2P |
| Short-circuit current | 10 kA |
| Circuit breaker type | Standard |
| Circuit breaker application | HACR rated |
| Electrical connection | Screw clamp terminals |
| Number of spaces required | 2 |
|---|---|
| AWG gauge | AWG 14...AWG 8 aluminum/copper |
| Product certifications | CSA |
|---|---|
| Ambient air temperature for operation | 104 °F (40 °C) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.00 in (5.08 cm) |
| Package 1 Width | 3.00 in (7.62 cm) |
| Package 1 Length | 3.00 in (7.62 cm) |
| Package 1 Weight | 10.720 oz (303.907 g) |
